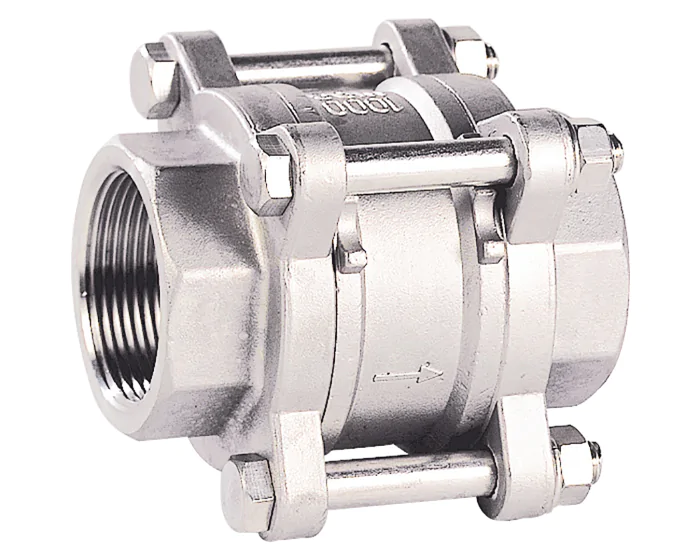

Stainless steel CF8M spring check valve 384 3 piece body NPT 1/4''
€22.81
(excl. btw)
The 384 series is a 3-piece body spring check valve, in stainless steel, with NPT threaded ends, metal-metal tightness and PTFE gaskets. It is ACS certified for drinking water and complies with CE 1935 for the food idnustry.
Specification
Value
DN inches NPS
1/4''
Option certificate 3.1
Yes
Mounting direction
All positions
Construction standard
EN 12516-1 - ASME B16.34
CE risk category
III Module H
Thread standard
ANSI B1.20.1
Tightness test standard
API 598. table 6
Closure member material
Stainless steel AISI 316
Application
Industry
ATEX atmosphere
Group II Cat. 2G/2D
ATEX compatible
Yes
DN
DN8 - 1/4''
Face to Face (mm)
60.0
Sealing
Metal / Metal
Fluid
Acids
Gasket
PTFE
Kv (m³/h)
1.2
Body material
Stainless steel CF8M (1.4408)
PS (bar)
63
Connections
NPT FF
Seats
Stainless steel AISI 316
TS max (°C)
200
TS min (°C)
-20
ATEX zone
1 & 21. 2 & 22
Drinking water compatibility
Yes
CE
Yes
Obturator type
Spring
If you have any questions about this product, please feel free to contact us .
Product Name
Product Number
EVAC Number
Price
Add to Cart
11067
NPT FF Stainless steel CF8M (1.4408) Spring 1/4''
384002
S1010870
€22.81
(excl. btw)
add to cart
11068
NPT FF Stainless steel CF8M (1.4408) Spring 3/8''
384003
S1010871
€22.81
(excl. btw)
add to cart
11069
NPT FF Stainless steel CF8M (1.4408) Spring 1/2''
384004
S1010872
€28.79
(excl. btw)
add to cart
11070
NPT FF Stainless steel CF8M (1.4408) Spring 3/4''
384005
S1010873
€37.71
(excl. btw)
add to cart
11071
NPT FF Stainless steel CF8M (1.4408) Spring 1''
384006
S1010874
€44.23
(excl. btw)
add to cart
11072
NPT FF Stainless steel CF8M (1.4408) Spring 1''1/4
384007
S1010875
€61.51
(excl. btw)
add to cart
11073
NPT FF Stainless steel CF8M (1.4408) Spring 1''1/2
384008
S1010876
€88.74
(excl. btw)
add to cart
11074
NPT FF Stainless steel CF8M (1.4408) Spring 2''
384009
S1010877
€127.00
(excl. btw)
add to cart
